Administration Guides

Connect to Keycloak

To connect to the console, two scenarios are possible:

• This is your first connection
• Your personal system access account has been authorized to connect

With your personal account, you simply enter your credentials. If this is your first connection, you must retrieve the credentials stored in a Kubernetes secret within Rancher. Once connected to the Rancher console:

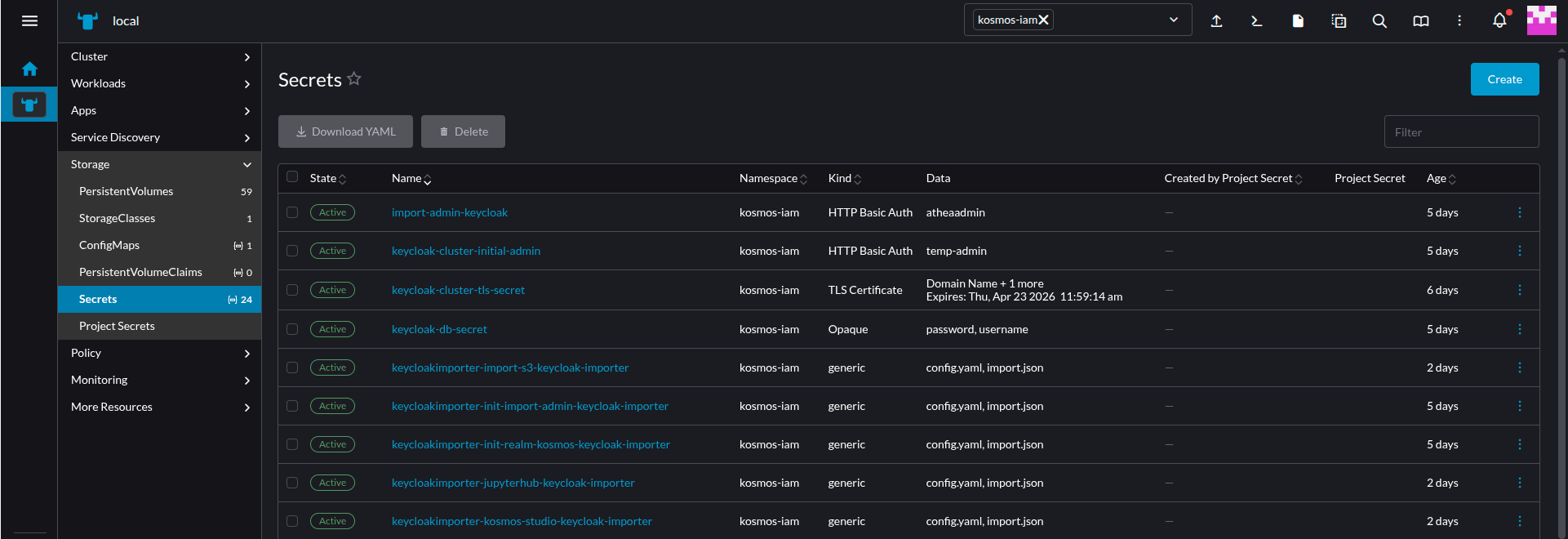

• Filter the kosmos-iam namespace
• Go to the Storage > Secrets menu

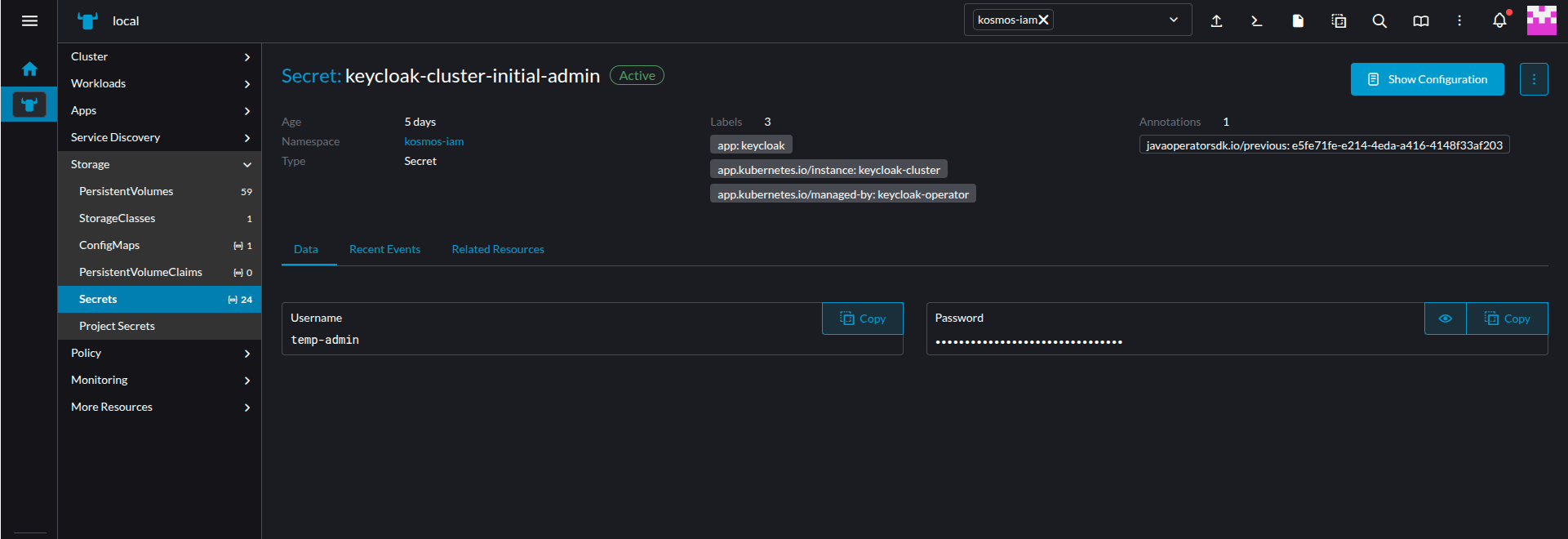

• Click on the keycloak-cluster-initial-admin field
• The window that appears allows you to retrieve the login credentials for the Keycloak console

Configure User Federation

Prerequisite for LDAPS

Keycloak needs the signing root CA used to sign the LDAP certificate

Get the root signing CA and verify the signature chain cryptographically

Without an intermediate CA:

openssl verify -CAfile root-ca.pem ldap-server-cert.pem

With an intermediate CA:

openssl verify -CAfile root-ca.pem -untrusted intermediate-ca.pem ldap-server-cert.pem

Expected result: ldap-server-cert.pem: OK

Create a secret with the signing root CA used to sign the LDAP certificate

apiVersion: v1
kind: Secret
metadata:
  name: pf-ca-chain-secret
  namespace: kosmos-system-restricted
data:
  ca.crt: xxxxxxxxx

Configure the truststore value with this secret

The above secret must be used as a truststore value for the keycloak-cluster:

keycloak:
  truststores:
    pf-ca: ref+k8s://v1/Secret/kosmos-system-restricted/pf-ca-chain-secret/ca.crt

Configure LDAP connection

Connect to keycloak.

1. Click on User federation
2. Click on Add LDAP provider
3. Set a Display Name
4. Choose your LDAP implementation in Vendor: Active Directory for Active Directory, Other for OpenLDAP, etc. Form will be completed depending on you selection.
5. Set your LDAP url in Connection URL. For LDAPS, the port number is 636 .
6. Enable StartTLS: OFF
7. Use Trustore SPI: Always
8. Connection pooling: ON
9. Connection timeout: leave empty
10. Click on Test connection to check
11. Keep Bind type to simple
12. Set the Bind DN which will allow keycloak to connect to you LDAP.
13. Set the user password in Bind credentials
14. Click on Test authentication to check credentials validty
15. Set the Edit mode. READ_ONLY is usually what you want.
16. Set you user base dn in Users DN. Exemple: CN=Administrateurs,DC=DR-CPT,DC=INTRADEF,DC=GOUV,DC=FR
17. Set the Username LDAP attribute: uid or cn for OpenLDAP, sAMAccountName for Active Directory.
18. RDN LDAP attribute: cn
19. UUID LDAP attribute: objectGUID
20. Set the User object classes to match your configuration
21. You can either configure filter to select specific users in User LDAP filter. Syntax is in the form of (memberOf=CN=YourGroup,OU=Users,DC=YourDomain,DC=com)
22. Set the Search scope to Subtree.
23. Read timeout: leave empty
24. Pagination: ON
25. Referral: ignore
26. Import users: ON
27. Sync Registrations: OFF (Unless you want new users created by Keycloak added to your LDAP provider)
28. Batch size: 1000
29. Periodic full sync: OFF
30. Periodic changed users sync: OFF
31. Allow Kerberos authentication: OFF
32. Use Kerberos for password authentication: OFF
33. Cache policy: NO_CACHE
34. Enable the LDAPv3 password modify extended operation: OFF
35. Validate password policy: OFF
36. Trust Email: OFF
37. Click on Save

Configure groups

You may synchronize your groups to keycloak.

1. Click on User federation
2. Select your user federation
3. Click on Mappers on top of the settings panel
4. Click on Add mapper
5. Set a name such as groups
6. Select group-ldap-mapper
7. Configure LDAP Groups DN
8. Configure Group Object Classes, Membership LDAP Attribute, Member-Of LDAP Attribute if needed
9. You may configure a filter to select specific groups in LDAP Filter
10. Select a Mode
11. Click on Save

Add default group on user synchronization

This step will automatically assign a group to a user on synchronization. It will apply to all Users from the federation.

1. Click on User federation
2. Select your user federation
3. Click on Mappers on top of the settings panel
4. Click on Add mapper
5. Set a name such as default-group
6. Select hardcoded-ldap-group-mapper
7. Configure Group. The group must be first created.
8. Click on Save

Configure Password Policy

Connect to keycloak and select the realm you want to configure:

1. Click on Authentication in the left panel
2. Click on Policies
3. Click on Add Policy for each parameter you may configure
   1. Expire Password
   2. Not Recently Used
   3. Minimum Length
   4. Not Username
   5. Not Email
   6. Not Contains Username
   7. Uppercase Characters
   8. Special Characters
   9. Lowercase Characters
   10. Digits
4. Click on Save

Configure Brute Force

Brute force mecanism enable you to lock accounts base on failed logins.

Connect to keycloak and select the realm you want to configure:

1. Click on Realm Settings in the left panel
2. Click on Security defenses
3. Click on Brute force detection
4. In Brute Force Mode, select Lockout permanently after temporary lockout
5. Configure Max login failures
6. You may configure
   1. Wait increment
   2. Max wait
   3. Failure reset time
7. Click on Save

Add a new User

Check Keycloak Admin/Business LDAP Federation

Keycloak is configured to interface with LDAP to store users in two different LDAP organizations, depending on whether they are business or technical (admin) users.

By default, the business organization takes priority.

Before creating any user, you must therefore set the priority of the LDAP organization to be used for user creation.

attention

The user's LDAP organization will no longer be modifiable afterward.

Go to the User Federation tab. The ldap_admin and ldap_metier federations are listed.

Click the Manage Priorities button, then move the relevant row to the top for user creation (e.g., if you want to create a System Administrator, you must move ldap_admin to the top).

Create a user

First you need to connect to the keycloak admin UI (console) :

1. Select the realm kosmos in the upper left corner
2. Click on Users in the left panel to show the user list
3. Click on the Add user button
4. Configure the user :
   • Toggle Email verified as On
   • provide the Username/Email/First name/Last name
   • By clicking on the Join Groups button you can assign your user to one or more of the available groups in the realm
   • Finish the User creation by clicking on the Create button
5. After user creation you end up on your new user User details page, click on the Credentials tab.
6. Click on the Set password button :
   • fill the Password and Password confirmation fields
   • Leave the Temporary toggle as On if you want the user to change their password on first connection, otherwise toggle it as Off.

Assigning a Group

For technical users, assigning them a group is mandatory.

For business users, group assignment must be done in the GDA interface, on the business portal side, by a user with the necessary rights (an access administrator).

Click the Join Group button.

The page for selecting groups will appear:

• Groups the user already belongs to are grayed out.

• Other existing groups can be selected.

Select the group the user should belong to and then click Join.

A confirmation message will appear at the top of the screen.

Unassigning a Group

From the list of groups the user belongs to, located on the left side of the screen, select the group from which the user should be removed, and then click the "Leave" label located to the right of the selected group's row.

A confirmation request will appear: Are you sure you want to remove this user from this group? Click the red Leave button.

A confirmation message, "Removed group membership," will appear at the top of the screen.

Add a new Group

The infrastructure comes with predefined groups that grant permissions on the infrastructure components (core). It is recommended not to modify these groups.

To grant permissions on business applications to groups of users (from different business domains, for example), it is advisable to create a dedicated business group. This way, application permissions are granted to these business groups, to which the users will be assigned.

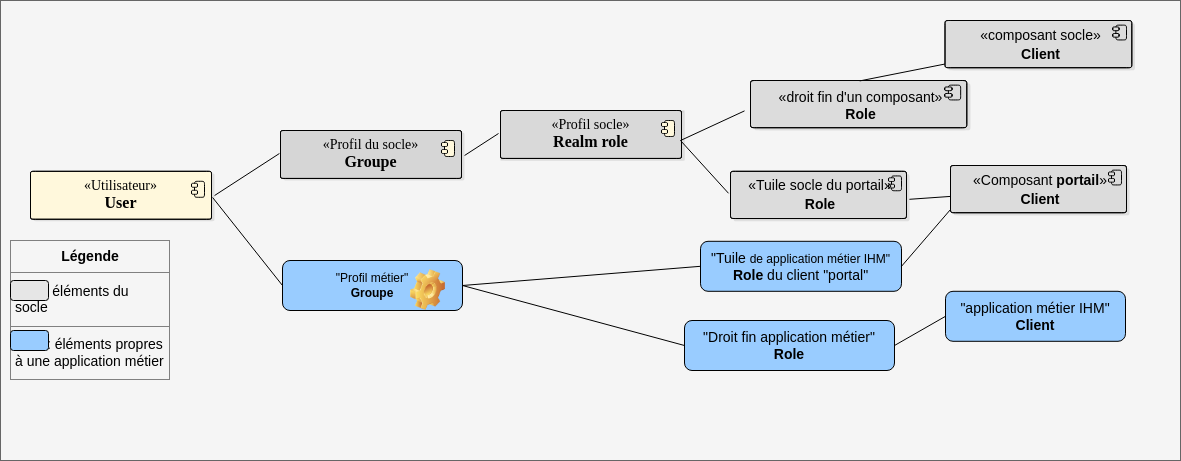

The diagram below illustrates this solution: the core elements that should not be modified are shown in gray, and the business elements are shown in blue.

The "client" and "roles" of an application can be automatically created during deployment. The business group is created according to this procedure. The assignment is described in the procedure Assign a Permission.

1. Display the role list

On the home page, click the "Groups" option in the left-hand menu.

2. Create a role

• Click "Create group"
• Enter the profile name
• Confirm by clicking "Save"

The message "Success! Group Created" confirms the successful creation of the profile.

Modify the role

The group can then be modified to:

• assign permissions to it
• define its parameters

See the procedure Assign a permission.

Roles for a business application deployed via SAP

When an application is deployed via SAP, two clients (KaName and KaName_priv) are created. If the application settings specified that clients should have multiple permissions, both clients will have these client roles.

For example, an application example-app might have the roles reader and writer. Therefore, in Keycloak, there will be two clients: example-app and example-app_priv. Furthermore, these two clients will have the roles reader and writer in their client roles. Thus, if you want to assign a user the role of reader, you must assign them the roles example-app reader and example-app_priv reader.

Why two Keycloak clients?

The user interface is protected by an OAuth2 reverse proxy. To function, this proxy requires a private client. Furthermore, it is from this private client that the JWT token is generated, which will then be transmitted to the backends of applications that request it (developer DTU, Application Exposure, Connect an application to the platform's SSO).

If the deployed application is a Single Page Application (SPA), meaning it doesn't have a backend, the JWT token cannot be transmitted to it. The application may still need the information from this JWT. To do so, it must communicate directly with Keycloak. However, Keycloak prohibits SPAs from using a private client for security reasons; therefore, a public client is required.

The deployment thus creates both clients, and it is up to the developer to decide how to use them (if they want to implement SSO): if their application is an SPA, they use the public client; otherwise, they read the data contained in the JWT transmitted by the OAuth2 reverse proxy.

Deleting a Group

Deleting a group in Keycloak has no effect because groups are replicated and then synchronized from LDAP (so they reappear ...).

Therefore, the deletion of a group must be done in LDAP using the Delete Group procedure, then in Keycloak: From the "Groups" menu, find and then delete the group.

Add a new Realm Role to the platform

First you need to connect to the keycloak admin UI (console) :

1. Check that you're currently in the realm kosmos. On the upper left corner, you must see kosmos Current realm. If not click on Manage realms beneath it, then kosmos.
2. Click on Realm roles in the left panel to display the list of realm roles.
3. Click on the Create role button.
4. Configure the realm role:
   • Enter the name of the role.
   • Optional: Add a description to outline what this role is supposed to represent.
5. Click Save.

Add realm role to user

First you need to connect to the keycloak admin UI (console) :

1. Check that you're currently in the realm kosmos. On the upper left corner, you must see kosmos Current realm. If not click on Manage realms beneath it, then kosmos.
2. Click on Users in the left panel to display the user list
3. Click on the user you want to modify.
4. Go to Role mapping tab.
5. Click on Assign role.
6. Change the filter from Filter by clients to Filter by realm roles.
7. Tick the box corresponding to the realm role that you need to add or search for it.
8. Click Assign

Add realm role to group

Inheritance

When a permission is assigned to a group, all subgroups also inherit that permission.

Access permission to a GUI (portal tile) is represented by a role at the client level (portal) in Keycloak.

A permission within a component (specific permissions managed by each component) is represented by a realm role at the client level.

These specific permissions can be automatically created during the deployment of a GUI application if the GUI application has specified this.

First you need to connect to the keycloak admin UI (console) :

1. Check that you're currently in the realm kosmos. On the upper left corner, you must see kosmos Current realm. If not click on Manage realms beneath it, then kosmos.
2. Click on Groups in the left panel to display the list
3. Click on the group you want to modify or click on Edit option located to the right of the group's row to modify it.
4. The group information entry page will be displayed. By default, the Child Groups tab is displayed.
5. Go to Role mapping tab.
6. Click on Assign role.
7. Change the filter from Filter by clients to Filter by realm roles.
8. Tick the box corresponding to the realm role that you need to add or search for it.
9. Click Assign

astuce

If the group does not appear, click the 2nd View button (with a circular graph), located between the filter field and the blue Create Group button.

Add access to a portal's tile

Among the list of available Roles, with the Filter by client option:

• Search for roles that contain _IHM

Select the role(s) (which correspond to a portal tile) to assign to the group. The Assign button becomes available. Click on it.

A success message, Role mapping updated, appears, indicating that the role is associated with the group. The list of permissions is displayed in the Role mapping tab.

attention

If this GUI application manages granular permissions, assigning the tile's role is not enough; you must also assign the granular permissions: see the next step.

Add granular permissions for an application or component (a Keycloak client)

Among the list of available Roles, with the Filter by client option:

• Search by the name of the client (corresponding to the component) in question.

Select the granular permission to assign. The Assign button becomes available. Click it.

A success message, Role mapping updated, appears, indicating that the client and their end role have been assigned.

Modifying the Multi-Session Policy

By default, a new user session is blocked. To change this behavior, you must:

• Access the Keycloak administration console

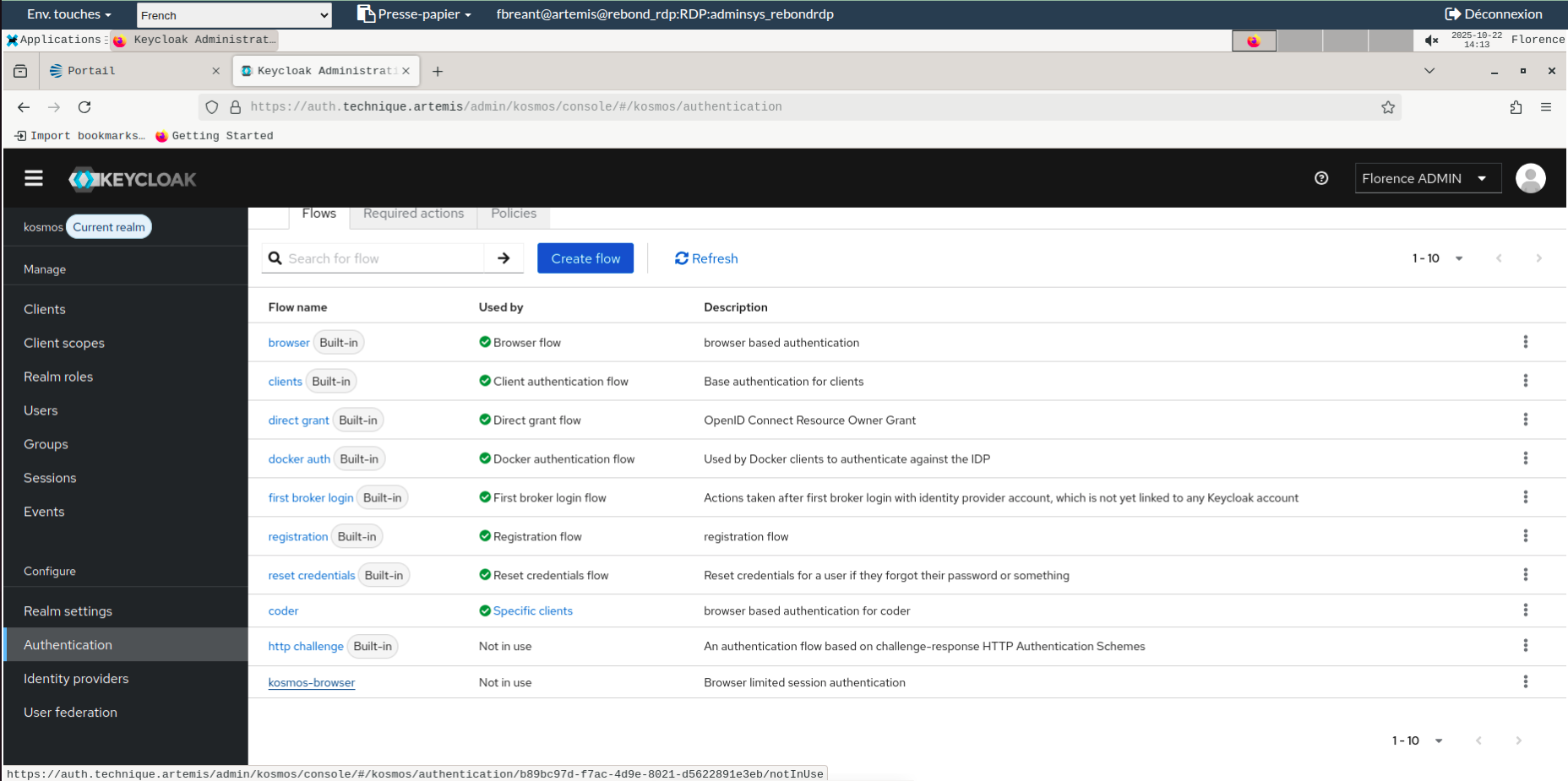

• Go to the Authentication menu, then kosmos-browser

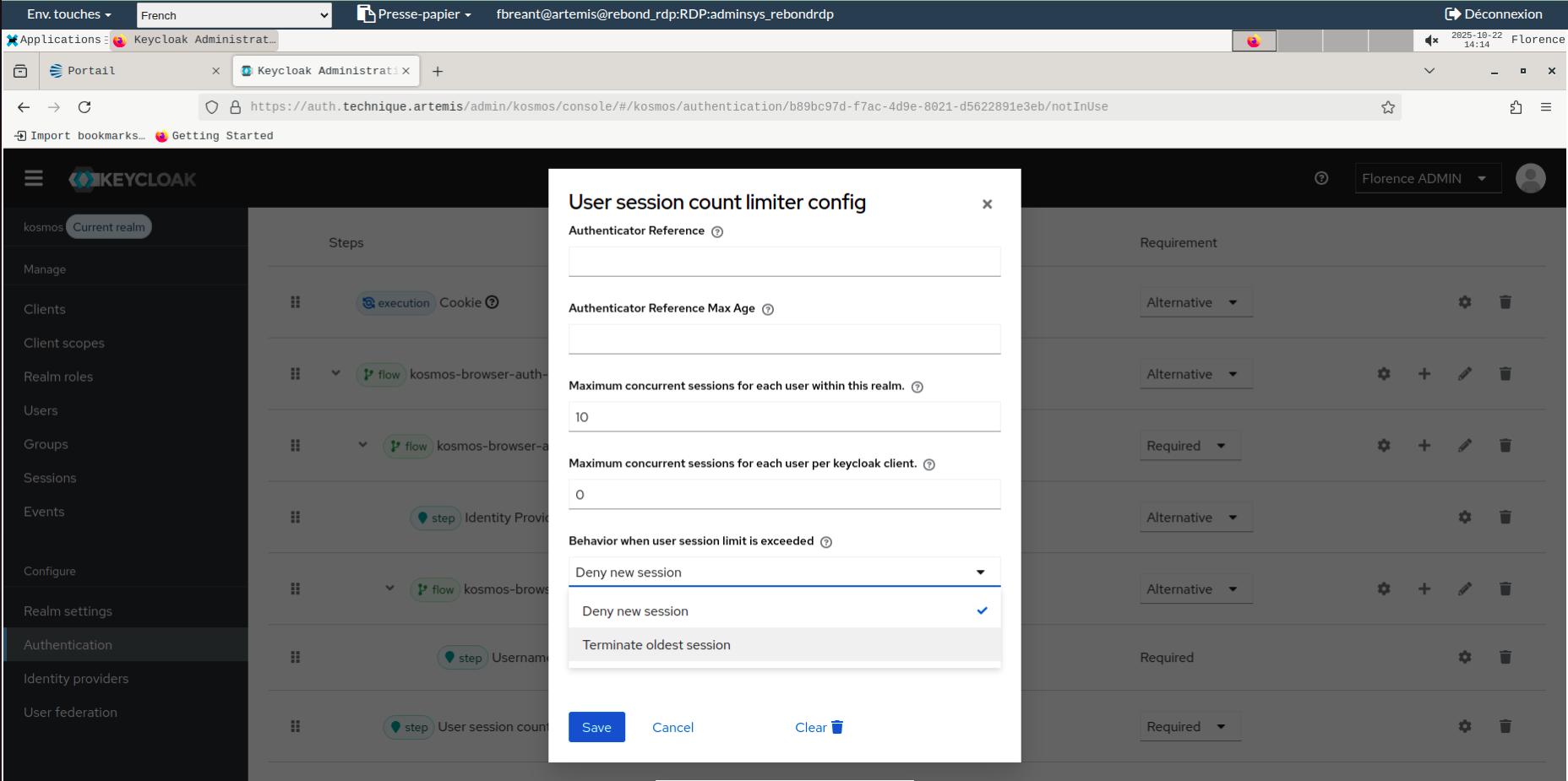

• Go to the settings for the user count limiter option and choose terminate oldest session instead of deny new session

Technical information

Location

The component is deployed in the Kubernetes cluster.

The corresponding Kubernetes namespaces and pods are named:

• kosmos-iam
• redis-node-*
• keycloak-*

Each business application will have a sidecar pod -oauth2- added to its namespace to manage RBAC.

Initial Configuration

Sizing

The Keycloak pod is deployed with a replication factor of 3 by default; this can vary depending on the configuration. The resources for one pod are:

• Limits:
  • CPU: 2
  • Memory: 4GB
• Requests:
  • CPU: 2
  • Memory: 4GB

The Redis pods are part of a stateful set of 3 replicas.

Specific Configuration

Keycloak's configuration is stored in a database and the information is provided when the component is deployed:

Name	Value
DB_VENDOR	"postgres"
JDBC_PARAMS	"connectTimeout=30"
DB_PORT	"pg.technique.artemis"
DB_PORT	"9999"
DB_DATABASE	DB_NAME
DB_USER	USER
DB_PASSWORD	PASSWORD

Redis's configuration is stored in a configMap redis-configuration.

Key Files

Configuration Files

Name	Path	Brief Description
standalone-ha.xml	/opt/jboss/keycloak/standalone/configuration	Keycloak global configuration
redis.conf	/opt/bitnami/redis/mounted-etc	Redis configuration
sentinel.conf	/opt/bitnami/redis/mounted-etc	Sentinel service configuration

Logs

Logs are redirected to the standard output of the Pods. They are retrieved by the log collection chain. They are also directly accessible within the pod. Software documentation: https://www.keycloak.org/server/logging

Binaries

Certificates for HTTPS communication are managed at the Kubernetes level on the Ingress servers. To enable LDAP communication, a truststore.jks file in the form of a configmap is attached to the pod and contains the platform's certificate chain.

Failure Combination

If the PostgreSQL database is unavailable, the Keycloak component stops working. For the OAuth2 proxy, ephemeral session storage is performed in the /data directory provided by a Persistent Volume. If the Persistent Volume is unavailable, the Redis pod crashes or cannot be deployed.
